Saelig SAE106S Digital Microscope


The Saelig SAE106S Digital Microscope is a versatile and powerful tool that aids in the visual inspection and debugging of printed circuit boards.

Descrição do Produto

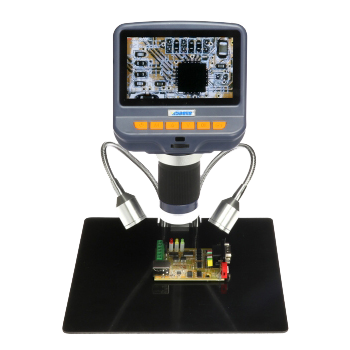

The Saelig SAE106S Digital Microscope is a versatile tool designed specifically for PCB inspection, but it can also be useful in other fields. It may be used as a standalone device with its built-in 4.3” color LCD screen, or connected to a PC. Illumination is enhanced by an 8-LED adjustable ring light, with two additional repositionable side lights. The SAE106S offers 10X-220X magnification for seeing the smallest blemish or trace problem, and can store images and videos on an SD card or to a Windows PC.

The SAE106S includes the following standard features:

  • 4.3inch full HD Color LCD screen.
  • 10x-220x continuous magnification.
  • High quality optics for stunning 1080P images
  • High-quality precision-adjustable stand changes the distance between the camera and the object and its magnification.
  • Precision focusing range 2cm – 9.5cm (0.8” – 3.75”) from the test object –  perfect for soldering activities!
  • UV filter provided not only protects the lens but also reduces reflections and stray light.
  • 8 LED ring illumination with adjustable intensity control allows optimal illumination levels.
  • Two arm-mounted fill lights on either side can be moved freely, and their brightness can be adjusted by a dimmer switch.

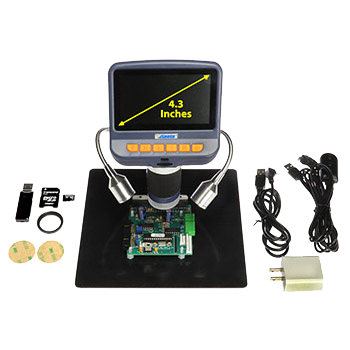

The Saelig SAE106S Digital Microscope ALSO includes the following Saelig-exclusive additions:

  • Large 7.75″x8″ non-conducting ABS plastic base.
  • 16gb micro-SD memory card for storing images and video
  • Micro-SD USB card reader
  • Updated English user guide
PCB Fault-finding
Visual inspection is the first tool in PCB debug. Searching for missing or charred components, bad solder joints, and solder bridges is the first order of business when a bad board comes in for repair. Look for solder bridges or solder whiskers between pads and solder joints, especially between the pins of fine-pitch SMD chips (but note that adjacent ground pins will often be bridged by design). If the problem is a short, there may be burned spots on the printed circuit board. They can be quite small but the normal green solder mask may be significantly discolored and visible under magnification.
