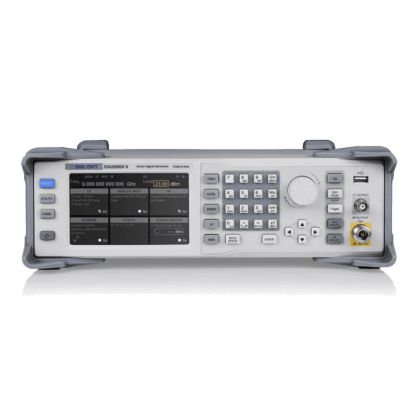

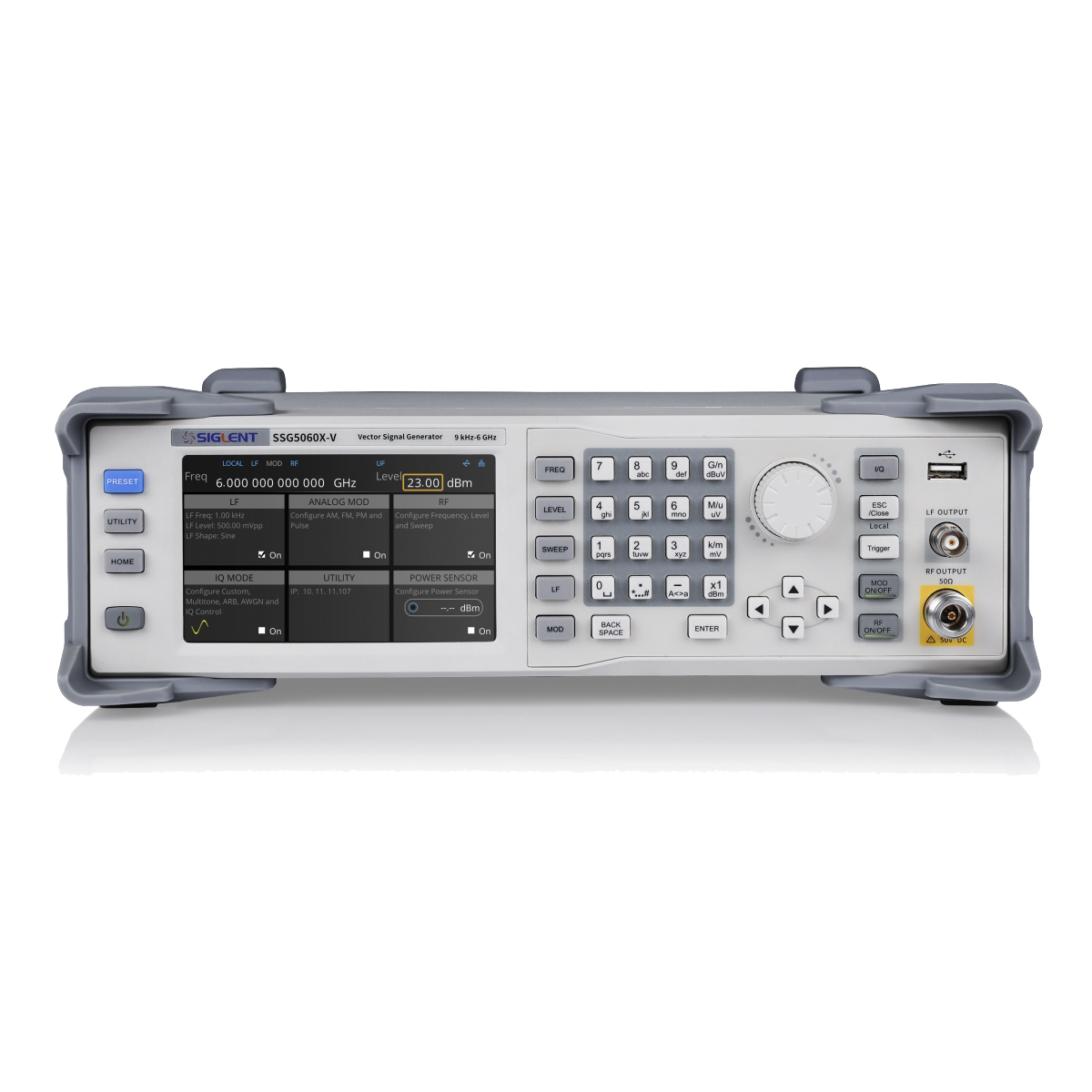

Siglent SSG5060X-V RF Signal Generator

Product Description

The SIGLENT SSG5060X-V RF Signal Generator generates analog and vector signals over a frequency range of 9kHz to 6GHz with a 0.001 Hz frequency setting resolution. It offers excellent performance in phase noise, spectral purity, bandwidth, EVM, and output power. The internal IQ modulation generator and waveform playback function make it easy to create even the most complex signal types. They also cover the most important RF band for digital wireless communications and include standard waveform files.

The SSG5060X-V’s 5” color touch screen makes controlling the instrument fast and intuitive. It produces a maximum output power +26dBm (typ.) with phase noise of -120dBc/Hz @ 1GHz, 20kHz offset (typ.)  The ARB Mode can be used to play back digital communication waveform files, while the Custom Mode on this  –V version can generate IQ modulated signals, such as QAM, PSK, ASK, FSK, sample rate up to 120Msps.  Frequency sweeps can be performed in linear or logarithmic steps.  AM, FM, PM analog modulation can be accomplished with internal, external, or Int+Ext sources. Built-in digital communication waveform files such as 5G-NR,LTE, WCDMA, WLAN, BlueTooth, and CDMA  are also available.  The SSG5000X can add real-time AWGN to modulation signals when testing receiver performance, or quickly simulate noisy RF environments.
