Lesson 9: Design Rule Checks

A Design Rule Check (DRC) checks your design for violations and identifies problem areas with schematic error markers. The DRC report lists all objects checked and the rule violations detected.

This walk-through demonstrates how to view and correct design rule violations in OrCAD Capture version 22.1 (2022). After you complete this topic, you will be able to:

  • Configure and run a design rule check (DRC)
  • Correct violations

To follow along, continue with the design from the last topic or use the provided design files. If the design files were not downloaded in the beginning of the Capture Walk-Through, the design files for this lesson can be found under the Materials tab.

Open in New Window

Running a Design Rule Check

Step 1: Select capture_tutorial.dsn in the Project Hierarchy.

Step 2: Select PCB > Design Rules Check from the menu.

Configuring the DRC Options

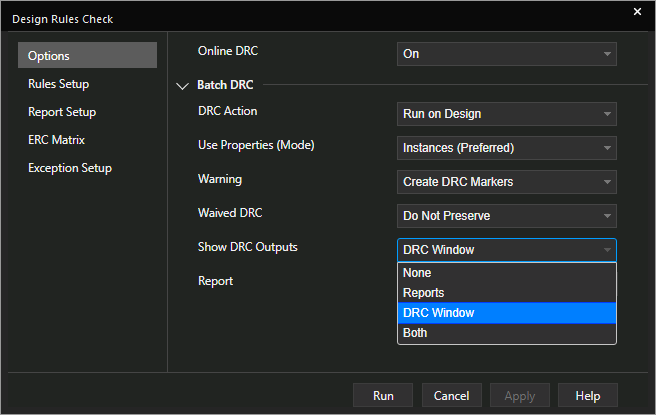

Step 3: In the Options tab, under Batch DRC, select Run on Design from the DRC Action drop-down menu.

Step 4: Select Instances (Preferred) from the Properties (Mode) dropdown.

Note: If you have a hierarchical design, select Occurrences for this setting.

Step 5: Select Create DRC Markers from the Warning dropdown.

Step 6: Select Do Not Preserve from the Waive DRC dropdown.

Step 7: Select DRC Window from the Show DRC Outputs dropdown.

Configuring the Report Path

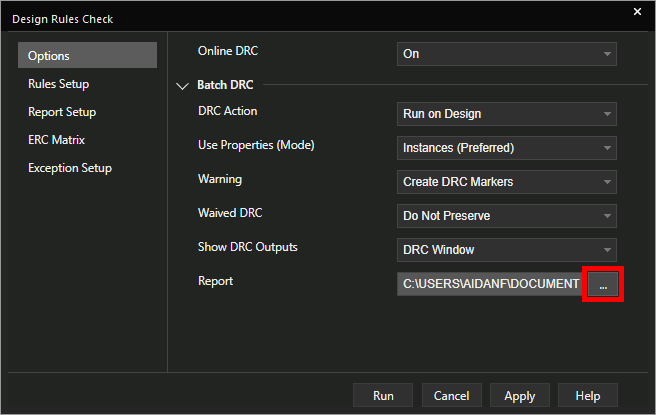

Step 8: Select the ellipsis for Report to open the file browser.

Step 9: Browse for a location to save the report. Name the report and click Open.

Configuring the Design Rule Check

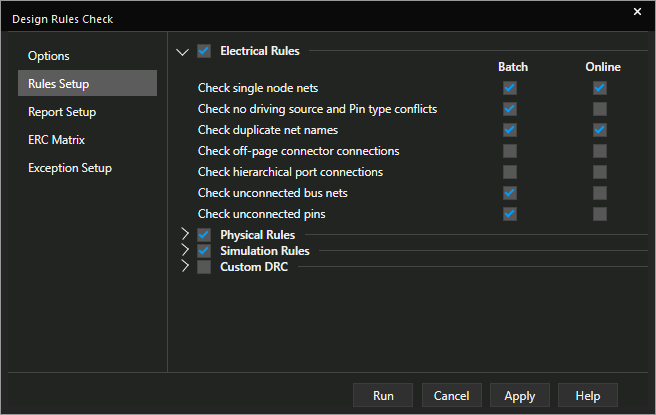

Step 10: Select the Rules Setup tab. Leave the default settings.

Note: Here you can select which electrical and physical rules to check in the design. Custom rules can also be assigned.

Configuring the DRC Report

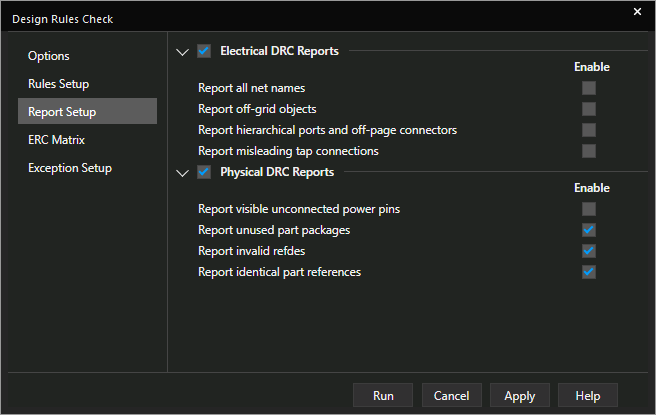

Step 11: Select the Report Setup tab. Leave the default settings.

Note: Here you can select which electrical and physical items are included in the report.

Configuring the ERC Matrix

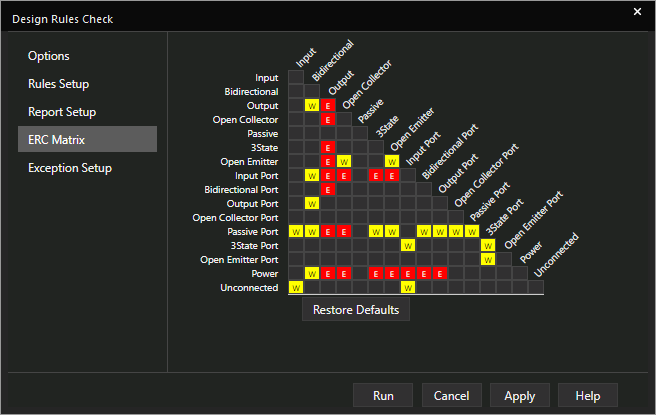

Step 12: Select the ERC Matrix tab. Leave the default settings.

Note: This matrix is used to test connections between pins, hierarchical blocks, and hierarchical ports. The ERC Matrix flags invalid pin-to-pin function connections found within the design. The Matrix shows all possible pin-to-pin combinations. Define a pin combination by toggling between valid (empty) or invalid (flagged with an error or warning).

Configuring Rule Exceptions

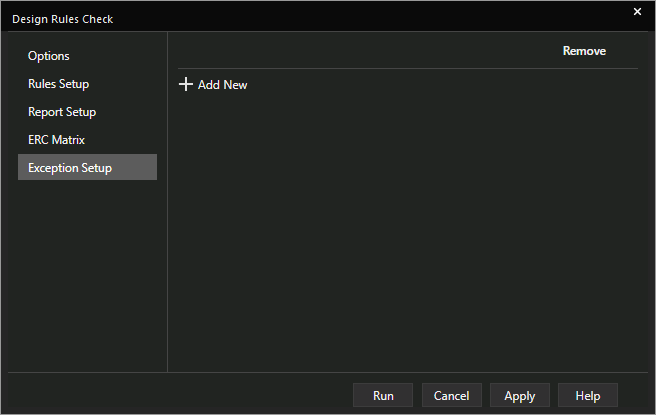

Step 13: Select the Exception Setup tab. Leave the default settings.

Note: Here you can define rules you want excluded from the DRC by selecting the Add New button.

Step 14: Select Run to generate the DRC Report.

Step 15: Click Yes when prompted.

Viewing the DRC Violation Markers

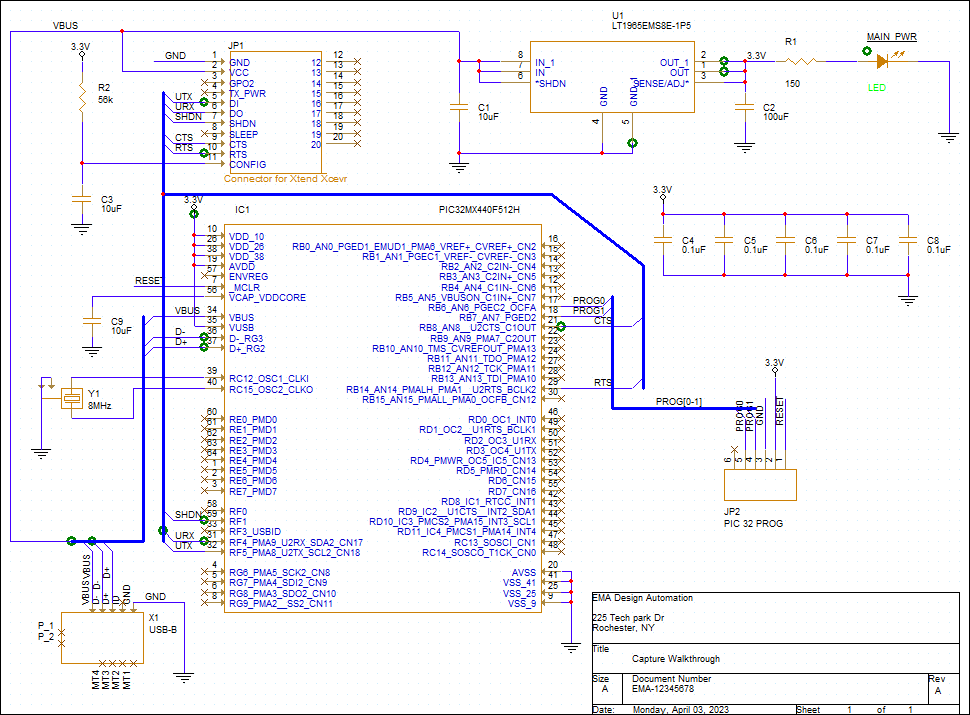

Step 16: When the check finishes, view the markers on the PCB canvas. Each marker indicates a problem area.

Note: You may be prompted to open the DRC report in the system log. Click No.

Analyzing DRC Results

Step 17: Select the DRCs tab at the bottom of the window to open the DRCs panel.

Cross-probing between Design Rule Errors and the Schematic

Step 18: Double-click one of the errors to highlight the affected part, net, or pin in the schematic.

Step 19: To waive a DRC, right-click a marker and select Waive DRC.

Step 20: To view the DRC report outside Capture, open File Explorer and browse to the directory where the report was saved.

Note: By default, this is the working directory.

Viewing the DRC Report

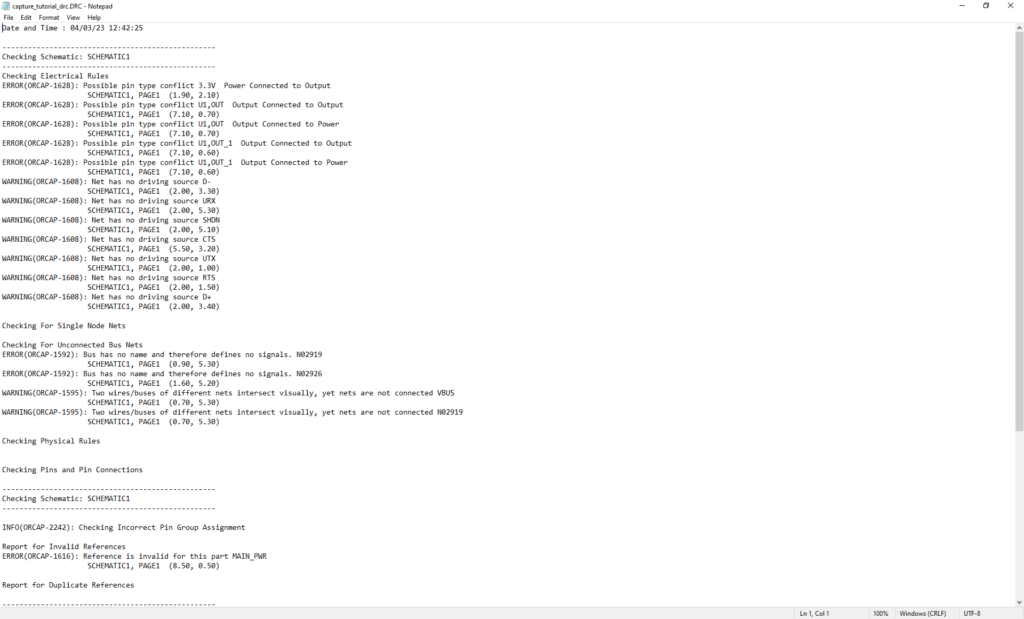

Step 21: Open the file in a text editor of your choice, such as Notepad. DRC violations are listed by schematic and type of rule.

Clearing DRC Markers

Step 22: Back in Capture, select capture_tutorial.dsn in the Project Hierarchy.

Step 23: Select PCB > Design Rules Check from the menu.

Deleting DRC Markers

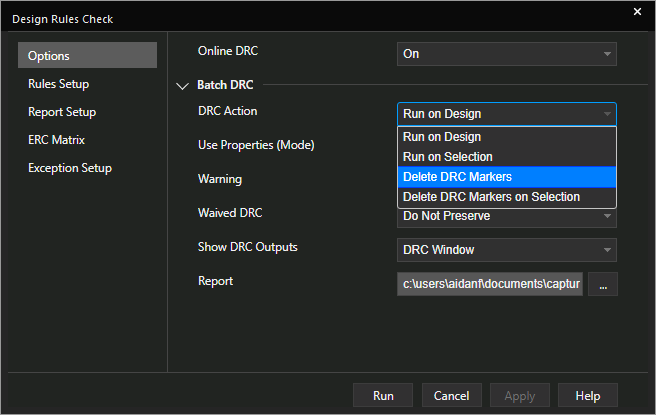

Step 24: In the Options tab, select Delete DRC Markers from the DRC Action dropdown. Click Run.

Step 25: The DRC markers have been removed but the error report remains unchanged.
