Capture Walk-through 1: Starting a Schematic

This walk-through introduces you to OrCAD Capture 17.4 and demonstrates how to create a new schematic project. After you complete this topic, you will be able to:

  • Open Capture 17.4 and create a new project
  • Edit design, template, and title block preferences
  • Add a new library file to your project
Open in New Window
  1. Open OrCAD Capture.

Note: You can locate your OrCAD software by going to the Start Menu > Cadence PCB 17.4-2019 > Capture CIS 17.4.

  1. Select File > New > Project from the menu or click on New Project in the Start page.
  1. Add a Name (Capture Tutorial) for your project.
  1. Click the Ellipsis button to browse for the location to save. Click OK
  1. Select Options > Preferences from the menu.

Note: In the preference dialog window, you can modify settings for colors, grid, pan and zoom, text, and other miscellaneous settings.

Here you have the ability to configure a light or dark color scheme for the application and canvas. Changes to the application theme will be applied after restarting Capture.

  1. Close the Preferences Window.
  1. Select Options > Design Template from the menu.

Note: The Design Template window, you can select page size, grid reference, and enter title block information.

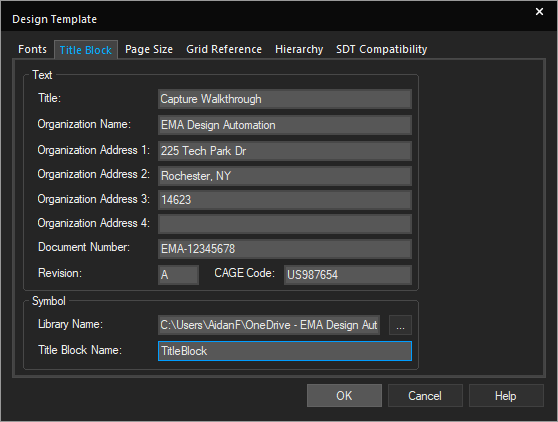

  1. Select the Title Block tab.
  1. Add the required information and set TitleBlock as the Title Block Name.

Note: Adding this information here will automatically populate the title blocks on any new pages.

  1. Click OK to close the Design Template Window.
  1. Select File > New > Library from the menu.
  1. Right click on the library and select Save As.
  1. Browse to the standard path for symbol libraries (C:\Cadence\SPB_17.4\tools\capture\library) and save the library as CaptureTutorial.OLB
