Capture Walk-through 10: Bill of Materials

This walk-through demonstrates how to create a Bill of Materials (BOM) for project parts.  After you complete this topic, you will be able to:

  • Create a custom BOM
  • Open the BOM in Excel

To follow along with this tutorial, continue with your design from Capture Walk-through 9 or use the included design file, CAPTURE TUTORIAL 10_BOM.DSN under the ‘materials’ tab.

Open in New Window

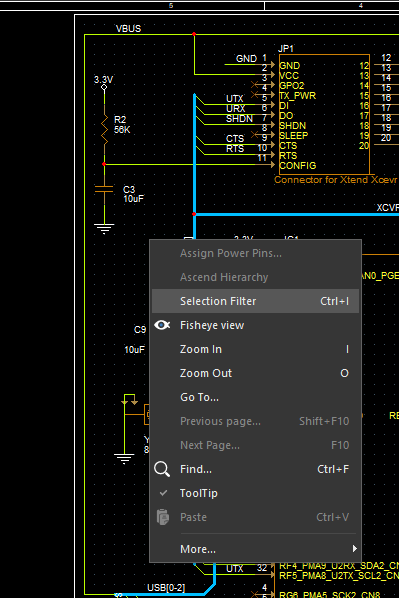

  1. In the schematic, right click and select Selection Filter (CTRL-I).
  1. Select Clear All
  1. Check the box next to Parts and click OK
  1. Highlight the schematic.

Note: Only the parts will be selected in the schematic.

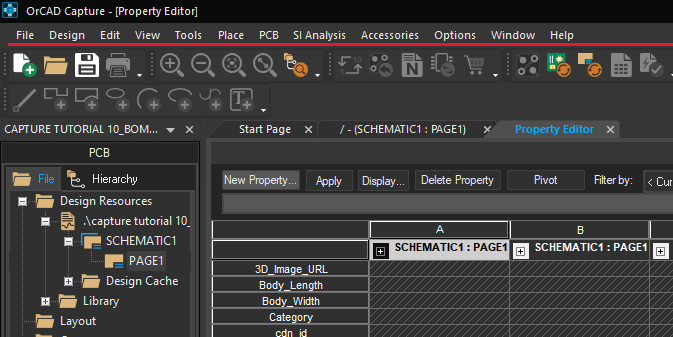

  1. Right click and Edit Properties.

Note: Fields have already been added for Manufacturer, Manufacturer Part Number, and Part Number. You can use CTRL+C and CTRL+V on the keyboard to copy and paste quickly in the properties window.

  1. Select the New Property button.

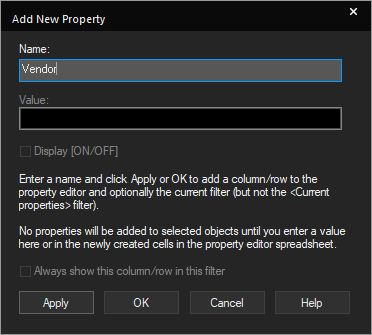

  1. Add a Vendor as the Name and click OK.

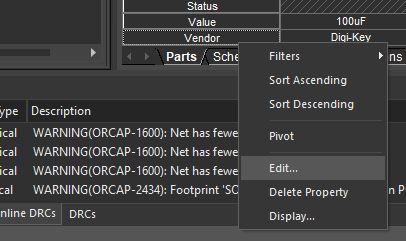

  1. Right click the Vendor row and select Edit.

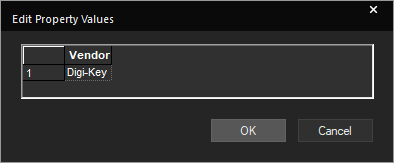

  1. Add Digi-key as the Vendor and click OK
  1. Close the Property Editor window.

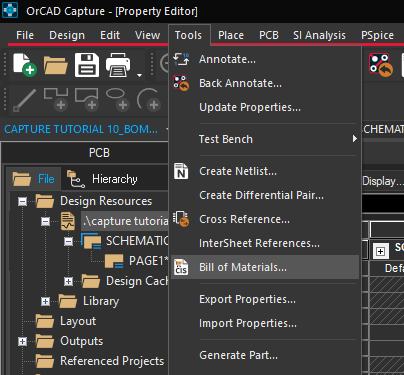

  1. With the design selected in the project hierarchy, select Tools > Bill of Materials from the menu.

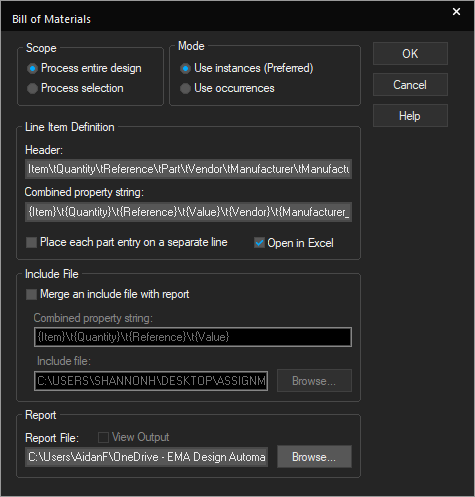

  1. Use the Header and Combined Property text boxes to customize the Bill of Materials or copy and paste the following text strings:

Header: Item\tQuantity\tReference\tPart\tVendor\tManufacturer\tManufacturer Part Number

Combined Property:


Note: Make sure the text precisely matches the property fields added- included spaces and case.

  1. Select Open in Excel
  1. Browse to a location to save the Bill of Material report.
  1. Click OK to generate the Bill of Materials.

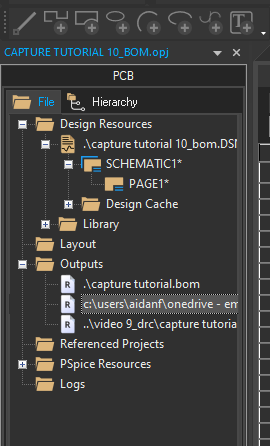

Note: You can also view the bill of materials by double clicking the report in the project directory outputs.
