Performing Copper Pouring with Allegro X AI

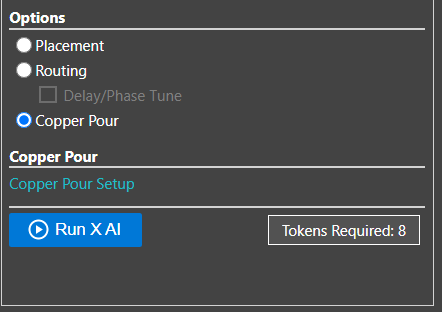

With the board uploaded and necessary items configured, the number of tokens required to perform copper pouring with Allegro X AI is visible in the X AI panel.

Select Run X AI to have the Allegro X AI engine generate the copper pours and planes.

Troubleshooting Allegro X AI for Copper Pouring

If Run X AI is grayed out, additional setup is required. Required setup can be identified with the warning icons.

Red warning icons, such as the one visible next to Copper Pour Setup, are errors and must be addressed before running Allegro X AI.
