Performing Routing with Allegro X AI

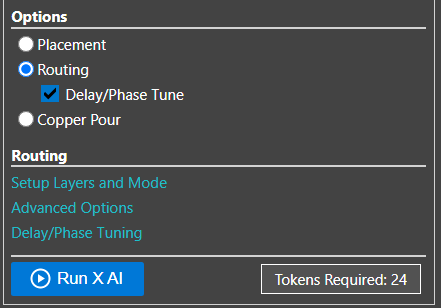

With the board uploaded and necessary items configured, the number of tokens required to perform routing with Allegro X AI is visible in the X AI panel.

Select Run X AI to have the Allegro X AI engine generate the routing.

Note: Be sure to check the box for Delay/Phase tune if desired before running Allegro X AI for routing.

Troubleshooting Allegro X AI for Routing

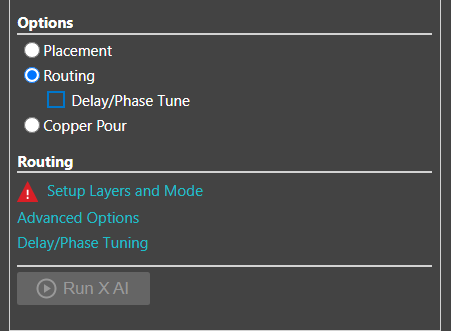

If Run X AI is grayed out, additional setup is required. Required setup can be identified with the warning icons.

Red warning icons, such as the one visible next to Setup Layers and Mode, are errors and must be addressed before running Allegro X AI.
