What is Allegro X AI Copper Pouring?

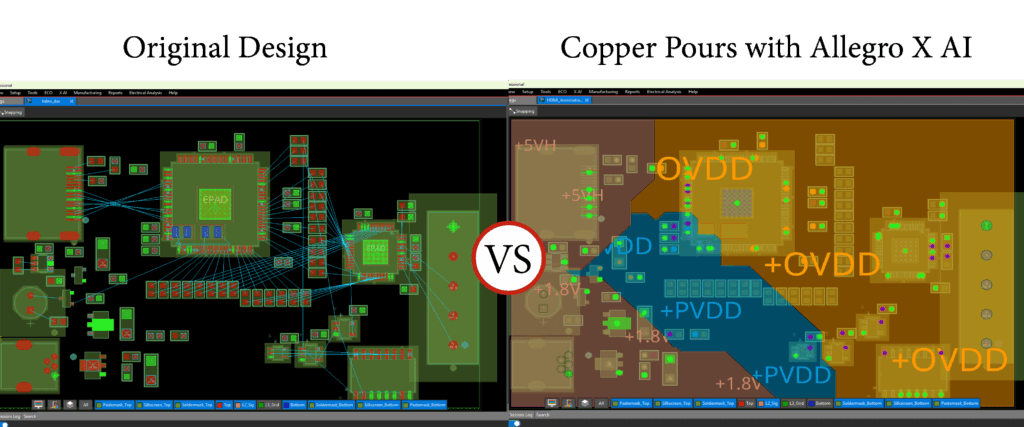

Allegro X AI quickly generates the metal pours required for your PCB designs in minutes. Allegro X AI reads in the defined design information to optimize the power delivery network and complete the required copper planes and pours. This information includes:

• Board cross section
• Power and ground nets
• Pin count
• Voltages
• Current
• Layer assignments

This guide provides in-depth information on copper pours with Allegro X AI including:

• Common use cases for copper pouring with Allegro X AI
• Required inputs for copper pours with Allegro X AI
• Recommended inputs to accelerate the AI engine and improve AI-enhanced copper pour results
• How to evaluate copper pours completed by Allegro X AI
• Common troubleshooting techniques based on Allegro X AI results for copper pouring
