What is Allegro X AI Routing?

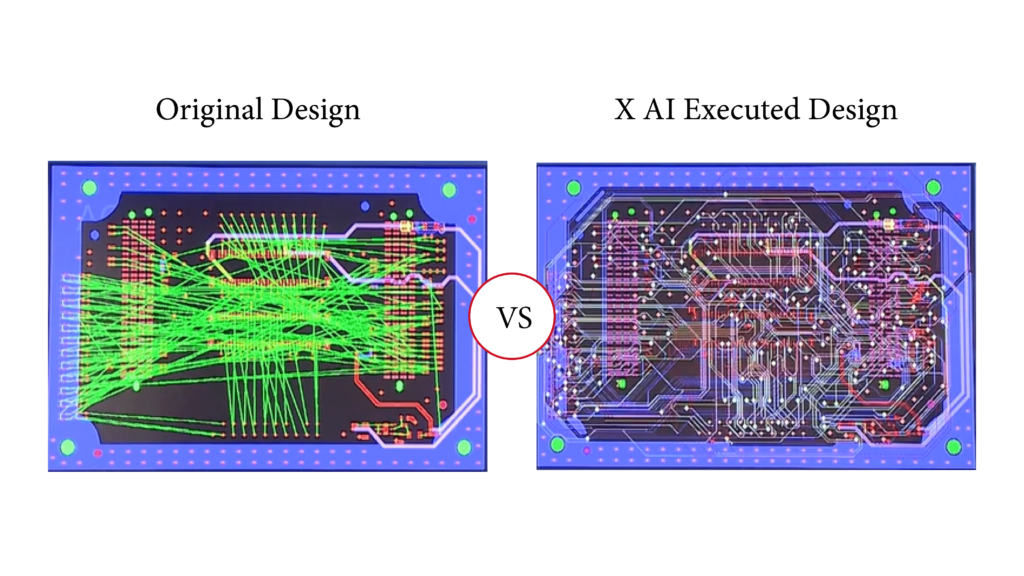

The Allegro X AI routing engine will help you achieve design closure faster with unparalleled accuracy. Allegro X AI brings an entirely new routing engine built from the ground up to leverage modern infrastructure and capabilities that will allow you to complete the connections on your PCB layouts quickly. Allegro X AI reads in the defined design information to optimize routing. This information includes:
- Board cross section
- Power and ground nets
- Route keepins and keepouts
- Physical, spacing, and electrical requirements
- Differential pair requirements
This guide provides in-depth information on routing with Allegro X AI including:
- Common use cases for routing with Allegro X AI
- Required inputs for routing with Allegro X AI
- Recommended inputs to accelerate the AI engine and improve AI-enhanced routing results
- How to evaluate routing completed by Allegro X AI
- Common troubleshooting techniques based on Allegro X AI results for routing
