Ultra Librarian for OrCAD

Streamline Your PCB Designs with Verified, Integrated Models

Ultra Librarian® for OrCAD provides a comprehensive, cloud-based library of millions of components eliminating the need for manual building and maintenance. Easily search, preview, and place components quickly without leaving the native CAD design environment saving time and minimizing errors.

Key Benefits

  • Integrated Component Libraries
  • Pre-Built, Verified Symbols and Footprints
  • Supply Chain Aware Component Selection
  • Accelerated PCB Design

Key Features

See how Ultra Librarian for OrCAD can benefit your design flow

Integrated Libraries

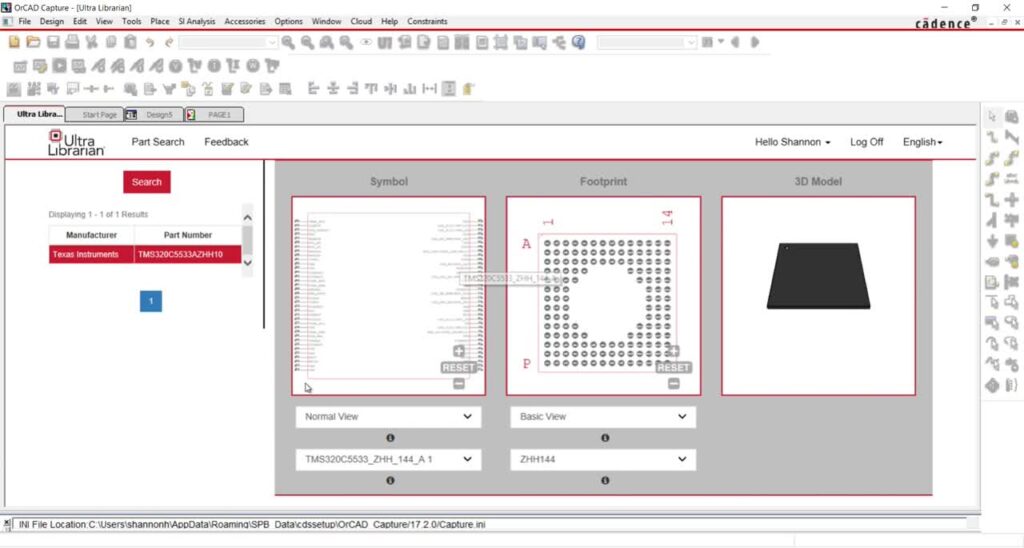

Obtain immediate access to a growing library of over 16 million verified parts from the leading component manufacturers. With Ultra Librarian built directly into OrCAD software, you can easily search, preview, and place parts with a simple drag and drop or download components to your library for use in future designs.

Integrated Libraries

Obtain immediate access to a growing library of over 16 million verified parts from the leading component manufacturers. With Ultra Librarian built directly into OrCAD software, you can easily search, preview, and place parts with a simple drag and drop or download components to your library for use in future designs.

3D Ready

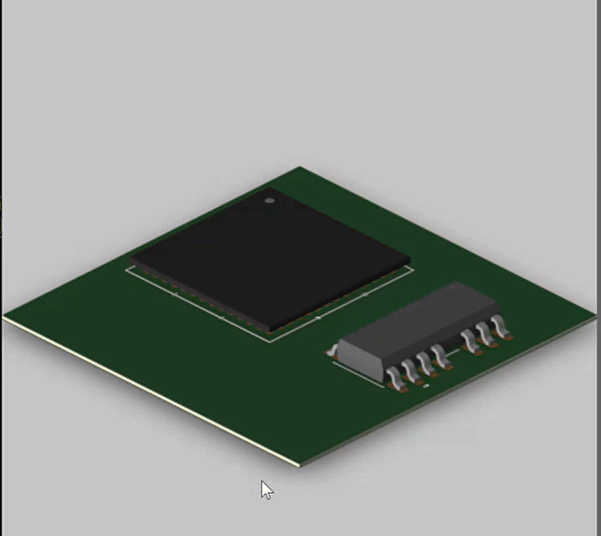

In today’s technological climate, time is of the essence. Acquiring quality 3D models will enhance your design process, reduce design time and allow you to better visualize your design. With Ultra Librarian for OrCAD you will have access to the largest available library of verified 3D parts which are pre-mapped to PCB footprints for streamlined verification of the PCB assembly.

3D Ready

In today’s technological climate, time is of the essence. Acquiring quality 3D models will enhance your design process, reduce design time and allow you to better visualize your design. With Ultra Librarian for OrCAD you will have access to the largest available library of verified 3D parts which are pre-mapped to PCB footprints for streamlined verification of the PCB assembly.

Supply Chain Aware

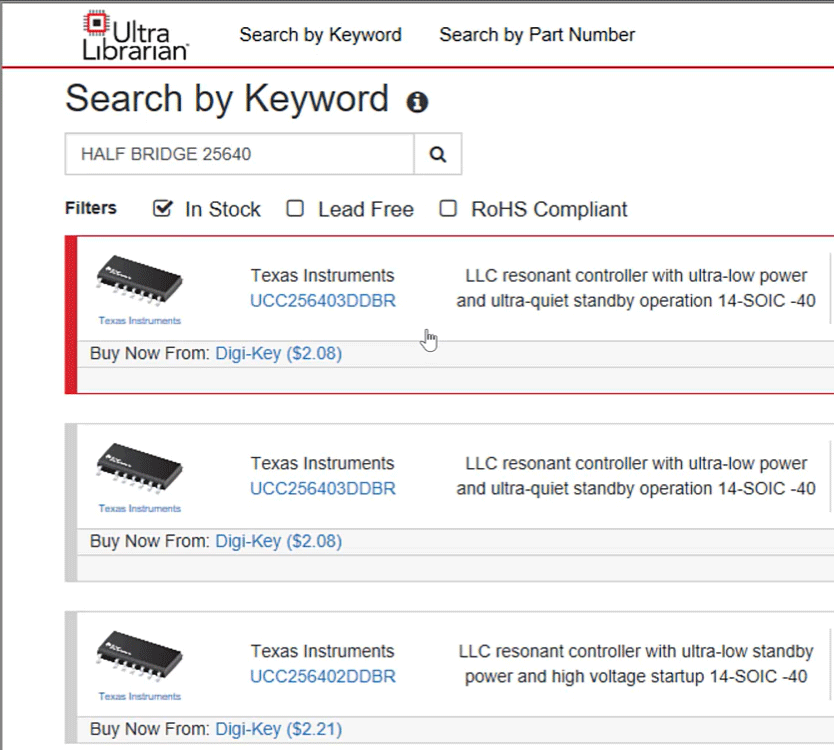

Get all the component information you need with the ability to search for component pricing, stock/inventory, and compliance specifications all in one place. Now, you can be confident parts are orderable and compliant BEFORE you place them.

Supply Chain Aware

Get all the component information you need with the ability to search for component pricing, stock/inventory, and compliance specifications all in one place. Now, you can be confident parts are orderable and compliant BEFORE you place them.

Industry-Standard Compliant Models

Have confidence knowing you have access to the most consistent and reliable library data. All parts are created utilizing globally recognized industry standards including IPC-73518 (PCB footprints), ANSI Y32.3-1975 (schematic symbols), and ISO10303-21 (STEP models). In addition all parts must also pass over 30 different verification tests prior to being added to the Ultra Librarian library.

Industry-Standard Compliant Models

Have confidence knowing you have access to the most consistent and reliable library data. All parts are created utilizing globally recognized industry standards including IPC-73518 (PCB footprints), ANSI Y32.3-1975 (schematic symbols), and ISO10303-21 (STEP models). In addition all parts must also pass over 30 different verification tests prior to being added to the Ultra Librarian library.

Integrated Reference Designs

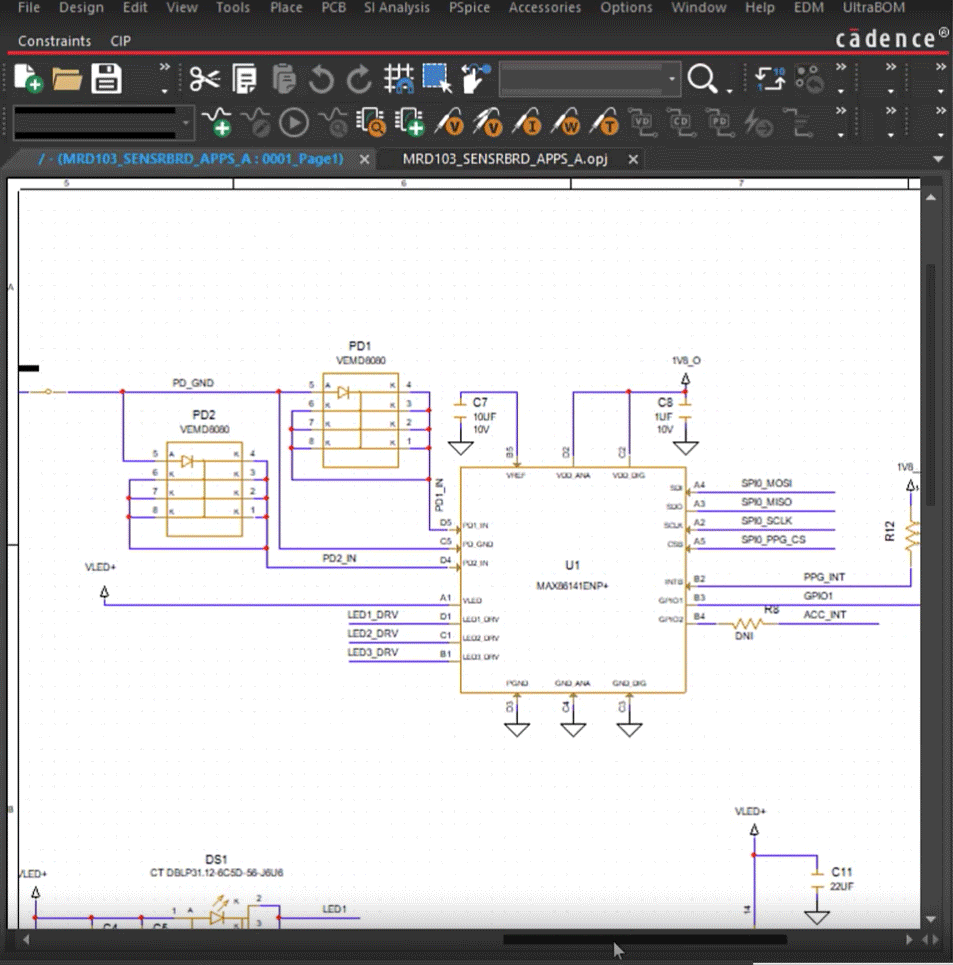

Access reference designs from manufacturers directly within OrCAD to verify part selection and jumpstart your PCB designs.

Integrated Reference Designs

Access reference designs from manufacturers directly within OrCAD to verify part selection and jumpstart your PCB designs.

Get Access Today

Annual Subscription

$80000

annually

Want to Learn More?

Reach out to schedule a demo, ask questions, get a quote or take a test drive.
