Allegro X AI

AI Assisted PCB Design to Dramatically Increase Designer Productivity & Efficiency

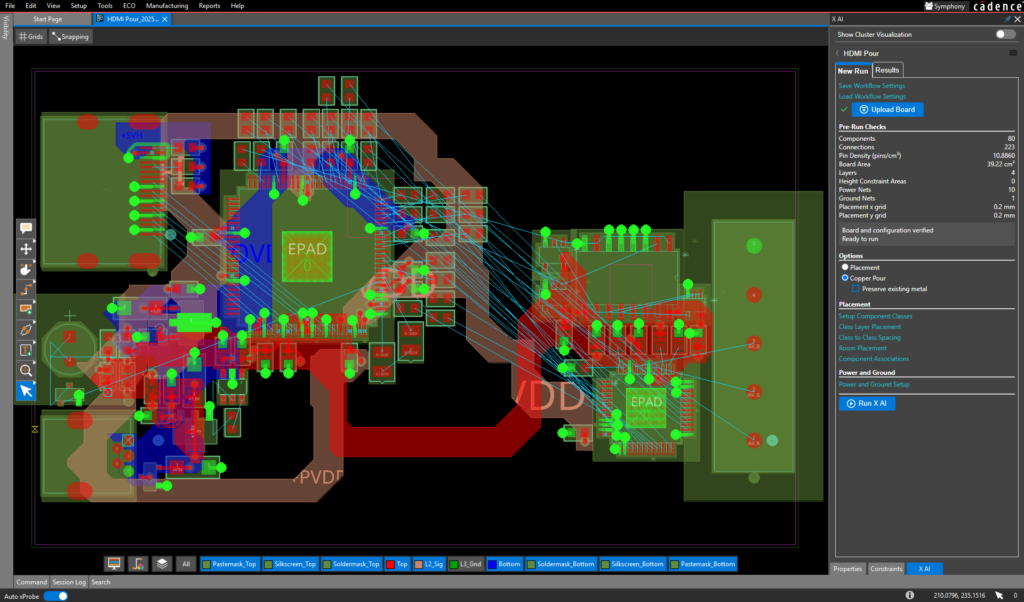

XAI Overview

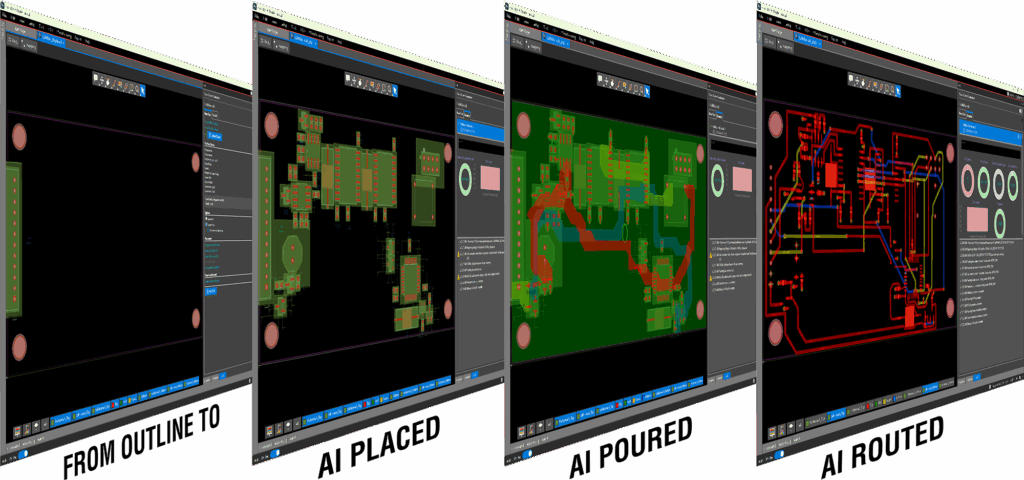

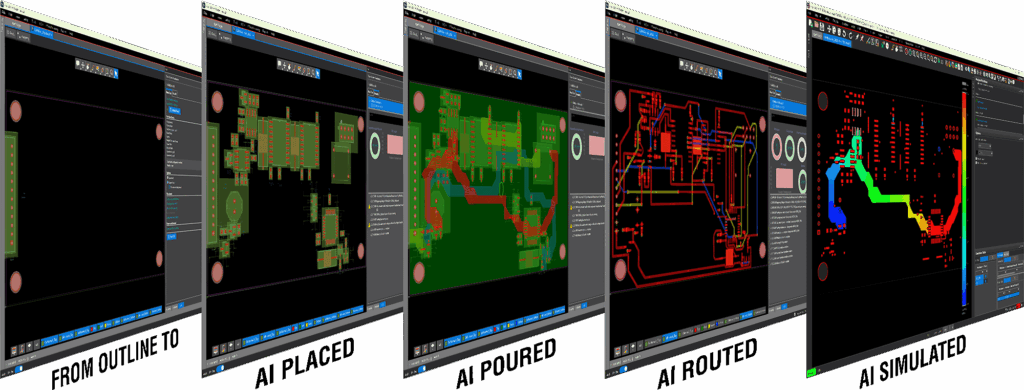

Allegro X AI Compilation - HiRes

Give Back TIME

One of your most valuable (and non renewable resources) is time. Allegro X AI helps design teams to drastically reduce design cycles while enabling more experimentation and optimization upfront. AI driven PCB design unlocks the ability to 10x productivity, enable quick informed decision making, and lets designers focus on the work that moves the needle while AI can help take care of the rest.

With Allegro X AI You Can

10X Your Productivity

Maximize designer productivity and free engineers up to focus on the highest value projects and tasks.

Optimize Upfront

Test more design possibilities in less time to ensure optimal configuration selection upfront.

Remove Bottlenecks

Evaluate design alternatives and identify bottlenecks early before committing to hardware.

CAPABILITIES

AI Assisted PCB Design Where it Matters Most

Leverage AI during the most time-consuming part of the design process to dramatically improve outcomes.

PLACEMENT

Dramatically Reduce PCB Placement Times with Allegro X AI

PCB Placement is one of the most critical and time consuming steps in the PCB design process. Effective placement can make or break a design and will have direct effect on routability, testability, and ultimate project success.

With Allegro X AI you can generate options for component placement, taking into consideration mechanical requirements for fixed component locations, height restrictions, assembly rules, room assignments, and connections giving you a fast path to finished placement reducing tasks from days to hours or even minutes.

Use Models:

General Placement Acceleration Test Placement Alternatives Fit Studies Route Congestion Evaluation
COPPER

AI Assisted PDN Generation for PCB Designers

Determine the optimal power and ground plane configuration for your designs to create a robust power delivery network. X AI incorporates the power and ground nets, pin count, voltages, currents, desired layers, and more to generate the metal pours required for your PCB designs in minutes.

With power deliver becoming increasingly complex and challenging X AI brings much needed automation and assistance to help designers converge on an ideal PDN quickly.

Use Models:

Copper Pour Acceleration Power Delivery Analysis
ROUTING

AI Assisted Routing for Fast & Accurate PCB Completion

Routing automation has long been a goal of PCB design teams. Allegro X AI brings an entirely new routing engine built from the ground up to leverage modern infrastructure and capabilities.

The X AI routing engine will help you achieve design closure faster with unparallel accuracy.

OrCAD X automated trace routing

Use Models:

Full Board Routing Closure Routability Studies Design Routing Updates
Allegro X AI Routing Capabilities are Currently Available through the Cadence Early Access Program*
DESIGN AWARE

Automatically Leverage Your Existing Design Data and Intent with X AI

Allegro X AI is built on the same data model you use today to design PCBs. This means X AI can access all the rules, settings, and requirements you already embed into your design today as guides for effective intent-aware AI automation. This helps you maintain a single source of truth defined in CAD that can be leveraged for design, AI, simulation, and manufacturing.

See our X AI configuration guide for more info on how to leverage these signals in Allegro X AI

What Data Does Design Aware Assist Use?

Electrical Constraints Stackup Board Outline Rooms Connectivity DFM Rules Physical Constraints Component Type / Class

Building AI for PCB Design is Complex, Using Allegro X AI is Not

What Sets Allegro X AI Apart?

Unmatched Results

10x Your Productivity

Allegro X AI provides the next step function in performance and productivity design teams have been looking for. The goal is lofty; dramatically reduce the time it takes for PCB implementation through AI driven automation. The results are equally impressive. Take a look at our case studies to see how AI is driving unmatched gains in productivity and performance.

Cadence has been tackling computational software challenges since its inception. AI brings another use case for the work the Cadence R&D team has been pioneering for years. With this deep computational software background working with customers in high performance, zero tolerance environments Cadence is best positioned to provide the highest performing highest accuracy AI EDA solutions on the market.

While AI and what it can do for automating workloads has recently been popularized with OpenAI ChatGPT, Google Gemini and others, automating PCB design through AI has been an initiative at Cadence since 2018. As one of the select few companies chosen by DARPA for their Intelligent Design of Electronic Assets (IDEA) program, Cadence has been working to realize the vision of automated EDA design for some time. Allegro X AI is the culmination of that work, commercialized for the PCB design community. What started as somewhat of a moonshot program has evolved into the next generation in PCB design productivity almost 10 years in the making.

Allegro X AI is built to deliver realistic, real-world results leveraging the over 30 years of experience Cadence has supporting the most demanding and complex PCB design workloads for their customers. Results are grounded in physics and manufacturability first and foremost to ensure a fast and reliable path to production.

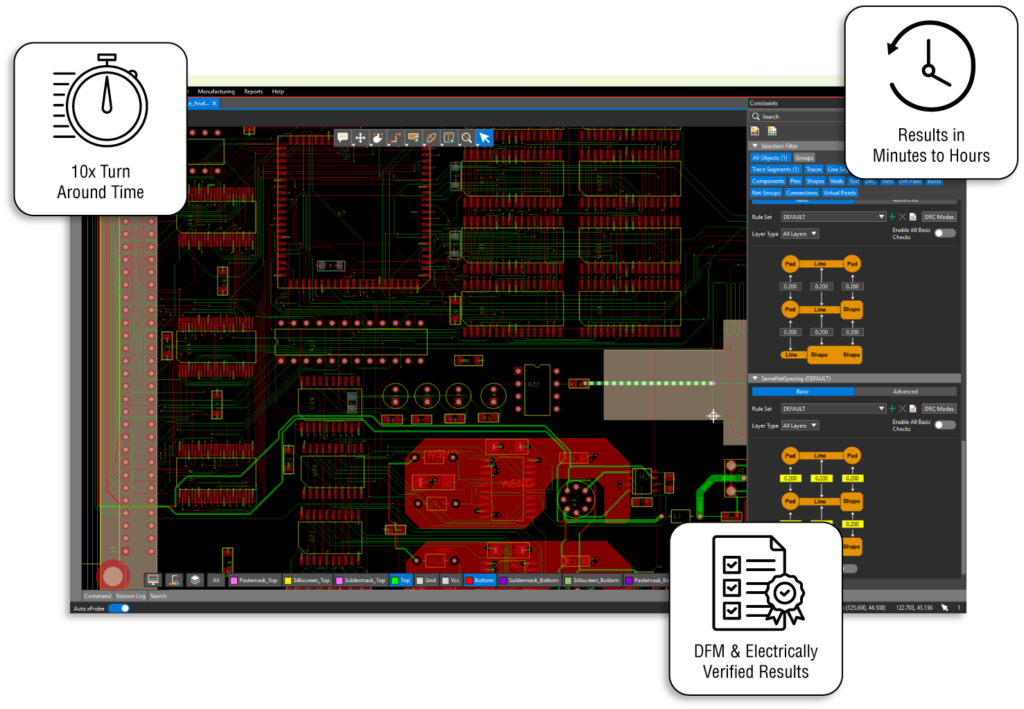

X AI image UnmatchedResults B

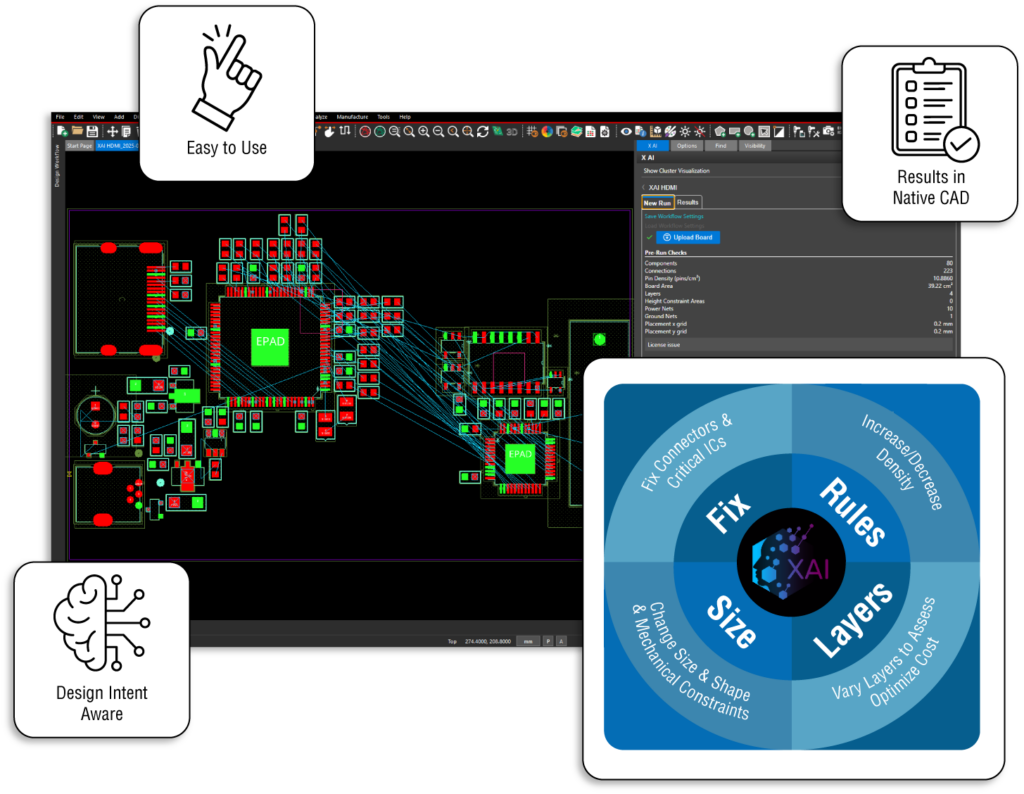

X AI image Integrated B
AI Inside

Integrated

Allegro X AI is something entirely new, yet but built to feel familiar to designers. This is made possible by integrating this groundbreaking new AI assisted design capability directly into your Cadence design environment. This deep integration ensures easy deployment and adoption and allows usage to occur naturally as part of the current design process.

Allegro X AI was built to utilize and understand your CAD data from the beginning. This allows you to leverage the design intent you already embed into your CAD files to drive fast and high-quality results with X AI. From electrical constraints, DFM requirements, to schematic connectivity and room placement, X AI was designed to leverage the data you already have to drive fast accurate results.

Leveraging Allegro X AI doesn’t require you to learn a new tool or deal with import and export flows to evaluate results. With Allegro X AI you can leverage the power of AI without having to leave your native CAD environment making this easy to deploy and use without disrupting existing workflows.

Allegro X AI is ready to use in both the OrCAD X and Allegro X Cadence PCB design platforms. No matter what PCB design solution you are using from Cadence you can access AI functions when and where needed.

Built to Grow

Scalable & Flexible

With the level of variation in board size, function, and complexity, AI assisted automation also needs to be able to scale and adjust to provide the best fit for specific project needs. Allegro X AI allows design teams to deploy and scale X AI as needed based on the requirements and tasks at hand, providing maximum flexibility and utility for AI assistance across as many design scenarios as possible.

Not every project need will be the same. Allegro X AI allows you to customize how AI can assist you per run to help ensure you are getting the productivity boosts you need right where you need them. Execute X AI on the entire board or just section or in phases (Place, Route, Copper). It is your choice to make sure you always have control.

Your designs are your IP and should be treated as such. That is why X AI does NOT use your designs for training purposes. This ensures your IP stays secure while you are able to leverage the productivity and performance speedup benefits X AI affords your team.

Access cloud compute resources directly with Allegro X AI. While your data is fully protected and secure you can leverage cloud scalability to help you allocate resources needed to execute AI runs as efficiently as possible.

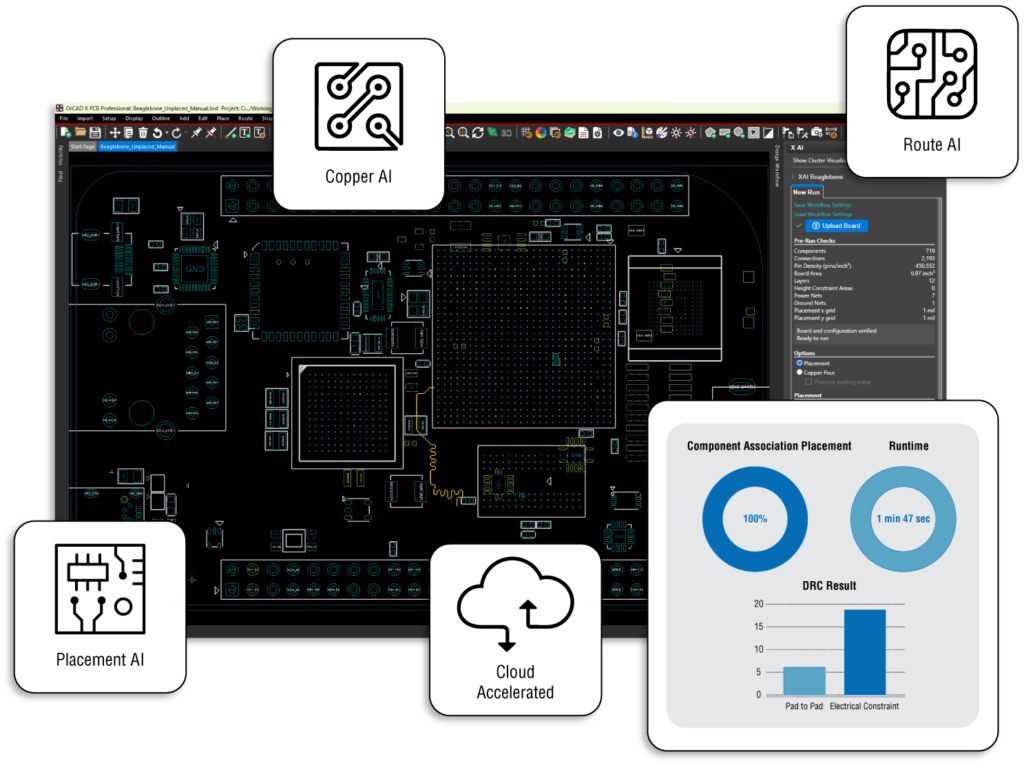

X AI image Scalable B

Example Use Cases

The proof is in the results. See examples of X AI in use.

Case Study
danfosssuccess insights

Danfoss Uses Cadence Allegro X AI to Amplify PCB Design for Energy Efficiency

Danfoss set out to explore how AI could transform its PCB design flow as part of its LEAP 2030 strategy.
See Case Study
Case Study
EMACaseStudy1 Timesavings

Accelerating Component Placement with Allegro X AI

The purpose of this case study was to perform internal testing of Allegro X AI, verifying the benefits and/or downfalls of incorporating automation in the PCB layout process.
See Case Study
Case Study
qualcommsuccess4

Qualcomm Saves Up to 60-70% of Vital Design Time with Allegro X AI

Allegro X AI demonstrates how AI-driven automation can transform PCB design, providing faster turnaround, enhanced productivity, and consistent quality while maintaining strict compliance with electrical, mechanical, and manufacturing standards.
See Case Study

FAQ

 Allegro X AI is never trained on customer data and designs. Cadence uses their own library of designs along with their over 30 years of PCB design expertise to train Allegro X AI.

Runs can vary from minutes to hours based on design complexity. The focus and goal for X AI is to make sure run time is orders of magnitude faster than getting to that same point through manual methods. Take a look at some of our case studies to see examples of results

 Yes! This is a great way to test multiple experiments at once or kickoff multiple projects in parallel to help further increase the time savings from Allegro X AI.

Currently X AI uses a secure Amazon Web Services infrastructure to run the AI engine. This infrastructure is setup to protect your data at all times and at no time does Cadence or anyone else have access to the data being run in X AI. A on-premise solution is coming soon. Our team is happy to work with your IT or infosec teams to answer any questions they may have.

All that is needed is OrCAD X or Allegro X release 25.1 or above and access to Allegro X AI which is then run directly in the PCB design interface.

Currently Allegro X AI only works inside the OrCAD X and Allegro X PCB design tools, however design importers are built-in to allow you to bring in designs from other CAD solutions like Altium, KiCAD, Eagle, and PADS and run them with Allegro X AI.

The capabilities and solution space is constantly evolving. Currently X AI supports designs with 5,000 components and below and do not use flex or rigid flex. Please contact us to discuss if X AI is the right fit for the designs you would like to accelerate.

Yes! Please contact us and we would be happy to discuss the use of Allegro X AI in your design environment.

The best way to find out is for us try Allegro X AI on your designs. Contact us to set that up.  In general customers are seeing 50%-70% time reduction using the Allegro X AI technology often shaving weeks or more off design cycles. Take a look at our case studies to see more detailed examples of results.

Yes! Please check out our Allegro X AI how-tos to help you get started. We will continue to add to this as we go forward.

The Cadence Early Access Program (EAP) is designed for customers who are interested in getting early previews to Cadence technology and working with us to help drive the development and functionality of upcoming projects. The AI Routing features in Allegro X AI are currently part of the early access program. If you are interested in participating, please contact us
