Multilayer PCB Design Guidelines

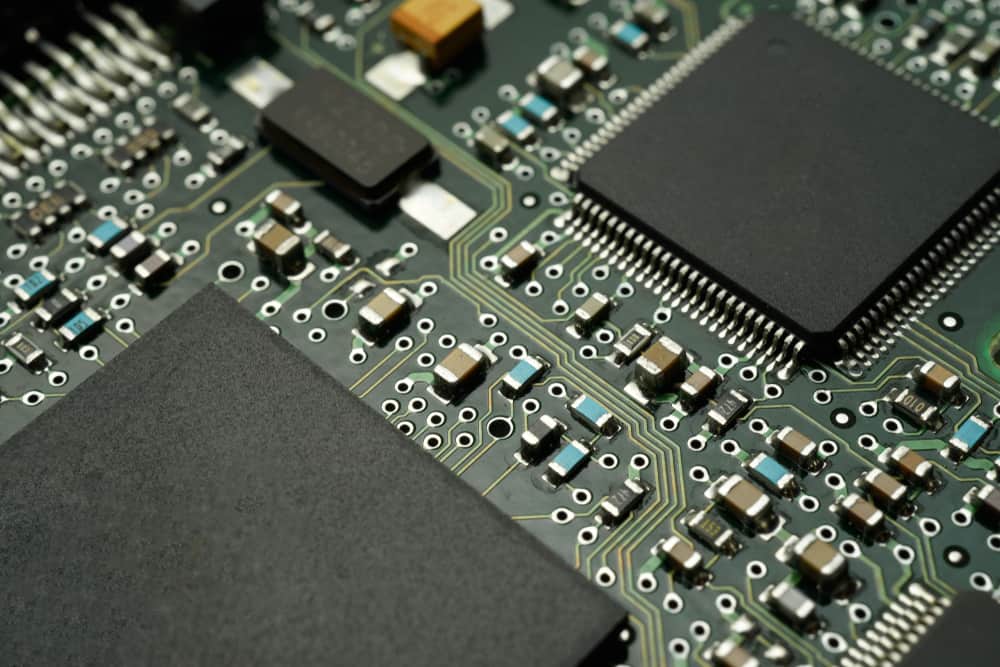

Multilayer PCB design guidelines are required for SMD technology

As the applications for electronic circuit boards continue to expand, the demand for greater functionality in smaller products continues to increase. Evolutions in component manufacturing techniques and the range of materials used are the most significant advancements that enable these goals to be largely met. However, using these technological advancements requires improving how boards are designed and built. One of the important of these improvements is the implementation of multilayer PCB design guidelines.

Why Are Multilayer PCB Design Guidelines Important?

PCBs can be classified in many ways. For example, high-speed and power group boards according to usage or application. The most common categorization is based on the PCB stackup, as listed below.

Types of Circuit Board Stackups

  • Single-sided PCB

Single-sided PCBs have parts on one side. This surface is the only signal layer in the stackup.

  • Double-sided PCB

Double-sided PCBs have two signal layers, which contain components: the top and bottom surfaces.

  • Multilayer PCB

Multilayer PCBs may be single-sided or double-sided. However, these boards typically have internal signal layers as well.

Although the manufacturing process is similar for all board types listed above, there are additional steps for multilayer PCBs. The inclusion of internal layers requires designers to make decisions and specify board parameters, if and where to use via-in-pads, that are otherwise not necessary.

Important Guidelines for Multilayer PCB Board Design

It may not be intuitive; however, using multiple layers in your stackup affects virtually all aspects of the PCB design process. For example, spacing and clearance routing must now consider the angle of signal traces on adjacent (internal) layers. The most important multilayer PCB design guidelines to implement are described below.

Important Multilayer PCB Design Guidelines

PCB Design Guideline

Description

Choose board dimensions based on external and internal routing requirements

Board size must be selected to meet spacing and clearance standard requirements for component placement and trace routing. This includes ensuring adequate spacing for internal signal layer routing and ground planes.

Choose the number of layers based on pin count, density, and board size

Pins include discrete parts and ICs. To estimate pin density, the following equation can be used:



Pin density = Area/(pin number/14)

Do not place high-speed signal layers adjacent to each other

Having signal layers next to each other in the stackup will magnify EMI problems and degrade the quality of signal propagation through your circuit(s).

Route signals on adjacent layers perpendicular to each other

This orthogonality helps with signal integrity by reducing crosstalk between layers.

Utilize multiple ground planes to improve signal integrity

Avoid split ground planes and use vias for connecting between grounds.

Connect traces to a ground plane at a single point

Multiple ground connections can result in variable ground potentials or ground loops.

Ensure the stackup is symmetric

The best PCB stackup design is a symmetric architecture with an even number of signal layers. This helps ensure the board will maintain its structural integrity through the manufacturing process.

Choose vias in coordination with your CM’s DFM rules and guidelines

Aspect ratios, drill type, annular ring size, and other DFMA considerations are important manufacturing concerns and should influence whether you choose a micro, blind, buried, or another type of via

The above list is not exhaustive. For example, it does not include impedance control which is a greater challenge for multilayer boards than for other designs. Yet, it does include important multilayer PCB design guidelines that should be followed to facilitate the optimal development of standard rigid circuit boards. For flex PCBs, there are additional issues to consider.

Additional Considerations For Flex PCB Design

The increased use of full and rigid-flex circuit boards is one of the major trends in the electronic products industry. This is due to mounting and installation flexibility, ability to withstand vibration, and increased thermal resistance. These are common in harsh environments like space, factories, and automotive systems. To realize these advantages requires consideration of the following:

Multilayer Flex PCB Design Guidelines

  • Do not exceed bend ratio standards
    How far the board will need to bend compared to flex circuit thickness is the bend ratio. For flex boards, the ratio is 20:1 for PCBs that will remain static during operation.
  • Traces should be alternated on top and bottom
    Stacking copper traces can lead to premature board degradation; therefore, staggering traces is recommended.
  • Only use through hole vias
    Through hole vias are recommended for flex sections or boards as other types may result in loss of connection.
  • Use large annular rings for vias
    Small annular rings may result in loss of connections between copper traces on separate layers.
  • For rigid-flex, place the flex area in the middle of the board
    Being surrounded by rigid materials aids in maintaining structural integrity and long-term reliability of the board.

The multilayer PCB design guidelines above should be incorporated when designing rigid and flex boards. For most EDA programs, it will be necessary to edit or create constraints to ensure your DRC alerts you when there are errors. The best option may be to partner with an industry expert that can provide you with software tools and solutions that integrate with design software to help facilitate the most efficient development of your new product.

EMA Design Automation is a leading provider of the resources that engineers rely on to accelerate innovation. We provide solutions that include PCB design and analysis packages, custom integration software, and engineering expertise, which enable you to create more efficiently. For more information on important multilayer PCB design guidelines and how we can help you or your team innovate faster, contact us.
