Antenna Matching Network Design Optimization

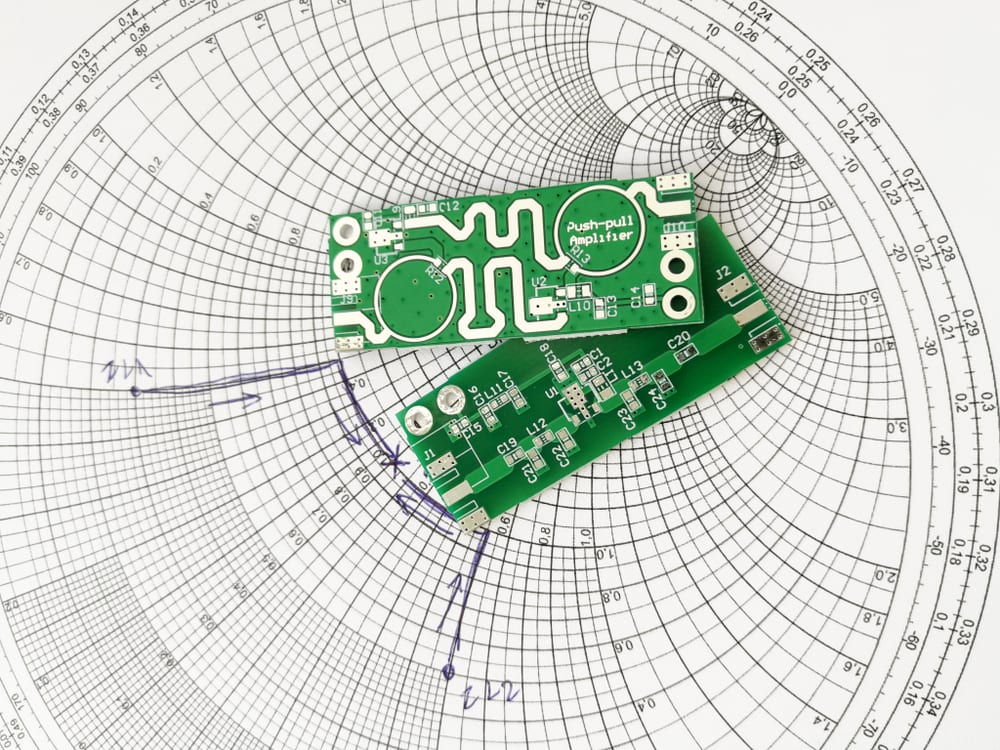

 Optimal antenna matching network design typically requires tools such as the Smith Chart

Today, wireless data transmission permeates virtually every industry. This demand is driven primarily by commercial and residential computer networking, along with the extensive use of mobile devices and portables. Applications, like the Internet of Things (IoT) and Industrial IoT (IIoT), are also pushing the envelope for greater functionality and advanced capabilities.

The common denominator for these uses is the reliance on electronic circuit boards for RF and microwave transmission and/or reception (TX/RX). And the antenna is a critical component for effective PCBA data and signal transmission. Tools; such as the Smith Chart, are helpful in choosing the best components for impedance matching. However, for optimization of complex TX/RX systems, more advanced tools are essential to select and implement the best antenna matching network design for your application and effectively manage product design cost.

Antenna Matching Network Design Techniques

The number of different circuits–or specific sets of components–that can be used for antenna matching is virtually endless. However, antenna matching network designs can be generally classified based on the number of elements used, as shown in the table below.


No. of Elements

Matching Network Designs



Transmission line

Here, the copper trace itself–absent any other components between the source and antenna–provides the antenna impedance matching for the system.


Ls-Cp, Lp-Cs,

Ls-Lp, Lp-Ls,

Cs-Lp, Cp-Ls,

Cs-Cp, Cp-Cs

Two-element architectures, also known as L networks, are very effective for wide band matching  These circuits consist of a parallel and series element, where one or both may be a capacitor or inductor.


Pi network, T network

Pi and T networks, which can be formed by cascading or mirroring two L networks, respectively, are typically used for narrow band antenna matching network design.

4 or more

Cascaded 2 element networks with series or parallel virtual resistance or other configurations

By adding more reactive components, lumped elements can be formed to target any desired frequency BW for your system.

The goal of an antenna matching network is to match the antenna or load impedance with the signal generation or source impedance; such that maximum power is transferred to the antenna for radiation. Maximum power transfer occurs when energy losses and reflections between the source and load are eliminated or reduced.

Designing Antenna Impedance Matching Networks

Antenna matching network design ranges from simple to complex, depending on the desired operating parameters, defined below, for your application.

Important Antenna Matching Network Design Parameters:

  • Characteristic Impedance (Z0)
    The input impedance (ratio of voltage to current) of a signal traveling along a lossless* transmission line viewed from the source.

  • Load Impedance (ZL)
    The impedance viewed from the load or antenna.

  • Reflection Coefficient (Γ)
    Gives the amount of energy from an incident wave that is reflected towards its source and is calculated using the following equation:

Gives the amount of energy from an incident wave that is reflected towards its source and is calculated using the following equation
  • Voltage Standing Wave Ratio (VSWR)
    Reflections result from impedance mismatch and cause standing waves to form that change the amplitude of the propagated signal. VSWR gives the ratio of the amplitude difference (peak to minimum) of the standing wave. This value can be determined from the equation below.

This value can be determined from the equation below.


*Lossless transmission lines do not exist. However, they are a useful ideal perspective from which practical systems can be evaluated.

Practically, maximum power transfer requires that the source and load resistances are the same and reactances cancel each other (are equal and opposite). This condition occurs at a specific frequency. Therefore, another important design parameter is the quality or Q factor of the antenna matching network. This value is defined as shown below.

Therefore, another important design parameter is the quality or Q factor of the antenna matching network. This value is defined as shown below.

For some systems, choosing the appropriate component values of capacitance and inductance is fairly straightforward. And tools like the Smith Chart can aid you in readily selecting the best circuit elements. However, for complex systems determining the component values for lumped reactances can be quite challenging. Especially, since physical constraints often restrict the Q factor value.

For more information on designing antenna matching networks, see our how-to.

Achieving the Best Antenna Matching Design

As the applications for wireless transmission continue to expand, the performance requirements and physical constraints on the circuit boards that drive them continue to become more demanding. Consequently, designing antenna matching networks can easily escalate from the selection of a hand full of components to selecting the best values for a large number of complex network elements. Doing so can be time-consuming and significantly drive up PCBA develop costs.

In these cases, the best solution is to employ a product development tool that includes advanced capabilities to help optimize your antenna matching network design. AWR, which is developed specifically for designing and analyzing RF and microwave systems, is such an EDA support tool. With AWR, design and simulation of your antenna network is integrated to aid you in efficiently optimizing gain, frequency range, loss and other important parameters.

EMA Design Automation is a leading provider of the resources that engineers rely on to accelerate innovation. We provide solutions that include PCB design and analysis packages, custom integration software, and engineering expertise, which enable you to create more efficiently. For more information on antenna matching network design optimization and how we can help you or your team innovate faster, contact us.
